Intro to Light Weight Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic material that has gotten widespread acknowledgment for its remarkable thermal conductivity, electrical insulation, and mechanical security at raised temperatures. With a hexagonal wurtzite crystal structure, AlN displays an one-of-a-kind combination of residential properties that make it one of the most excellent substratum material for applications in electronic devices, optoelectronics, power modules, and high-temperature settings. Its capability to effectively dissipate heat while preserving outstanding dielectric stamina placements AlN as an exceptional option to typical ceramic substrates such as alumina and beryllium oxide. This write-up explores the fundamental features of light weight aluminum nitride porcelains, explores manufacture strategies, and highlights its vital roles throughout innovative technological domains.

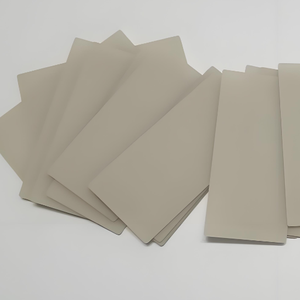

(Aluminum Nitride Ceramics)
Crystal Framework and Fundamental Residence
The performance of aluminum nitride as a substrate material is mainly dictated by its crystalline framework and innate physical residential properties. AlN embraces a wurtzite-type latticework composed of rotating aluminum and nitrogen atoms, which adds to its high thermal conductivity– usually going beyond 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value considerably exceeds those of various other widely utilized ceramic materials, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN possesses a large bandgap of around 6.2 eV, leading to exceptional electrical insulation residential properties even at high temperatures. It additionally demonstrates reduced thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an optimal match for semiconductor device packaging. Additionally, AlN displays high chemical inertness and resistance to thaw metals, enhancing its suitability for harsh atmospheres. These mixed qualities develop AlN as a top candidate for high-power digital substratums and thermally managed systems.
Fabrication and Sintering Technologies
Producing top quality aluminum nitride porcelains calls for exact powder synthesis and sintering methods to achieve dense microstructures with marginal contaminations. Due to its covalent bonding nature, AlN does not quickly compress with traditional pressureless sintering. For that reason, sintering aids such as yttrium oxide (Y ₂ O FIVE), calcium oxide (CaO), or rare planet aspects are usually included in promote liquid-phase sintering and improve grain boundary diffusion.
The fabrication procedure generally starts with the carbothermal reduction of light weight aluminum oxide in a nitrogen atmosphere to synthesize AlN powders. These powders are after that grated, shaped through techniques like tape spreading or shot molding, and sintered at temperatures between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Warm pressing or trigger plasma sintering (SPS) can additionally enhance density and thermal conductivity by minimizing porosity and advertising grain positioning. Advanced additive manufacturing strategies are additionally being checked out to fabricate complex-shaped AlN components with customized thermal management abilities.
Application in Electronic Product Packaging and Power Modules
Among one of the most noticeable uses of aluminum nitride porcelains remains in electronic packaging, specifically for high-power tools such as shielded entrance bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness enhance in contemporary electronic devices, effective warmth dissipation comes to be essential to guarantee dependability and long life. AlN substratums supply an optimum remedy by combining high thermal conductivity with outstanding electric seclusion, protecting against short circuits and thermal runaway conditions.
Moreover, AlN-based direct bound copper (DBC) and active metal brazed (AMB) substrates are increasingly used in power component layouts for electric vehicles, renewable energy inverters, and commercial electric motor drives. Contrasted to traditional alumina or silicon nitride substrates, AlN supplies much faster warm transfer and much better compatibility with silicon chip coefficients of thermal expansion, therefore reducing mechanical tension and boosting general system efficiency. Recurring study aims to boost the bonding stamina and metallization techniques on AlN surface areas to further expand its application extent.
Use in Optoelectronic and High-Temperature Devices
Beyond electronic product packaging, aluminum nitride porcelains play an essential duty in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal stability. AlN is extensively used as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications needing sanitation, picking up, and optical interaction. Its broad bandgap and low absorption coefficient in the UV array make it a perfect candidate for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s ability to operate reliably at temperature levels exceeding 1000 ° C makes it appropriate for usage in sensors, thermoelectric generators, and components revealed to severe thermal tons. In aerospace and protection markets, AlN-based sensing unit plans are utilized in jet engine tracking systems and high-temperature control systems where traditional products would fall short. Constant improvements in thin-film deposition and epitaxial growth techniques are expanding the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.

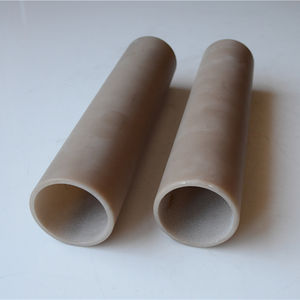

( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Integrity
A crucial consideration for any type of substrate product is its lasting integrity under operational stresses. Light weight aluminum nitride shows superior environmental stability compared to numerous various other ceramics. It is highly resistant to corrosion from acids, antacid, and molten metals, making sure durability in aggressive chemical settings. Nonetheless, AlN is prone to hydrolysis when subjected to moisture at elevated temperatures, which can deteriorate its surface and reduce thermal performance.
To minimize this issue, protective finishings such as silicon nitride (Si six N ₄), light weight aluminum oxide, or polymer-based encapsulation layers are usually applied to improve moisture resistance. In addition, cautious sealing and product packaging techniques are executed throughout gadget assembly to preserve the honesty of AlN substrates throughout their life span. As environmental policies come to be more strict, the safe nature of AlN likewise positions it as a favored option to beryllium oxide, which positions health and wellness risks during handling and disposal.
Conclusion
Light weight aluminum nitride porcelains represent a class of innovative materials distinctly fit to address the growing needs for efficient thermal monitoring and electric insulation in high-performance digital and optoelectronic systems. Their exceptional thermal conductivity, chemical stability, and compatibility with semiconductor modern technologies make them one of the most suitable substrate product for a wide variety of applications– from auto power components to deep UV LEDs and high-temperature sensing units. As manufacture technologies remain to progress and cost-effective manufacturing techniques mature, the fostering of AlN substrates is expected to climb considerably, driving technology in next-generation electronic and photonic tools.
