Introduction: Key tools in power electronics
Silicon-controlled rectifiers (SCRs), likewise referred to as thyristors, are semiconductor power gadgets with a four-layer three-way junction structure (PNPN). Given that its introduction in the 1950s, SCRs have actually been widely used in commercial automation, power systems, home appliance control and various other areas due to their high stand up to voltage, large present bring capacity, quick reaction and simple control. With the advancement of technology, SCRs have developed into several kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions in between these kinds are not only mirrored in the structure and working concept, however likewise establish their applicability in different application circumstances. This post will start from a technical perspective, incorporated with details parameters, to deeply analyze the major differences and regular uses of these four SCRs.
Unidirectional SCR: Fundamental and secure application core
Unidirectional SCR is one of the most standard and usual type of thyristor. Its framework is a four-layer three-junction PNPN arrangement, including 3 electrodes: anode (A), cathode (K) and gateway (G). It just enables existing to move in one direction (from anode to cathode) and switches on after eviction is set off. When turned on, even if eviction signal is removed, as long as the anode current is higher than the holding current (normally much less than 100mA), the SCR stays on.

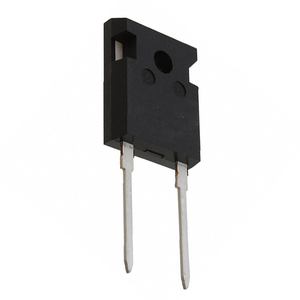

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and existing tolerance, with an onward repeated optimal voltage (V DRM) of up to 6500V and a rated on-state average present (ITAV) of as much as 5000A. As a result, it is commonly made use of in DC electric motor control, industrial heating unit, uninterruptible power supply (UPS) correction components, power conditioning gadgets and various other events that require continuous conduction and high power processing. Its advantages are basic structure, inexpensive and high dependability, and it is a core part of lots of traditional power control systems.
Bidirectional SCR (TRIAC): Perfect for air conditioning control
Unlike unidirectional SCR, bidirectional SCR, also known as TRIAC, can achieve bidirectional transmission in both favorable and adverse fifty percent cycles. This framework includes two anti-parallel SCRs, which enable TRIAC to be caused and switched on any time in the air conditioner cycle without altering the circuit connection approach. The balanced transmission voltage series of TRIAC is generally ± 400 ~ 800V, the optimum lots current has to do with 100A, and the trigger current is less than 50mA.
As a result of the bidirectional transmission qualities of TRIAC, it is specifically suitable for AC dimming and speed control in household home appliances and customer electronic devices. For instance, devices such as light dimmers, follower controllers, and air conditioner fan rate regulators all count on TRIAC to accomplish smooth power regulation. Furthermore, TRIAC additionally has a lower driving power need and is suitable for incorporated style, so it has actually been commonly utilized in clever home systems and small appliances. Although the power thickness and changing speed of TRIAC are not just as good as those of brand-new power gadgets, its inexpensive and hassle-free usage make it a crucial gamer in the area of little and medium power air conditioning control.
Gateway Turn-Off Thyristor (GTO): A high-performance agent of energetic control
Entrance Turn-Off Thyristor (GTO) is a high-performance power device created on the basis of traditional SCR. Unlike common SCR, which can just be shut off passively, GTO can be shut off actively by using an adverse pulse present to the gate, hence achieving more adaptable control. This feature makes GTO execute well in systems that need frequent start-stop or rapid feedback.

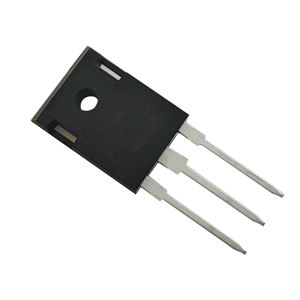

(Thyristor Rectifier)
The technical parameters of GTO reveal that it has extremely high power handling ability: the turn-off gain has to do with 4 ~ 5, the maximum operating voltage can get to 6000V, and the optimum operating current depends on 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These performance indications make GTO widely used in high-power scenarios such as electric engine traction systems, huge inverters, commercial electric motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complicated and has high changing losses, its performance under high power and high dynamic action requirements is still irreplaceable.
Light-controlled thyristor (LTT): A dependable selection in the high-voltage seclusion atmosphere
Light-controlled thyristor (LTT) utilizes optical signals instead of electrical signals to cause transmission, which is its largest attribute that distinguishes it from various other kinds of SCRs. The optical trigger wavelength of LTT is usually between 850nm and 950nm, the reaction time is gauged in milliseconds, and the insulation degree can be as high as 100kV or over. This optoelectronic seclusion mechanism considerably improves the system’s anti-electromagnetic disturbance ability and security.
LTT is mostly made use of in ultra-high voltage straight present transmission (UHVDC), power system relay protection gadgets, electro-magnetic compatibility protection in clinical devices, and armed forces radar interaction systems etc, which have extremely high demands for security and security. For instance, lots of converter terminals in China’s “West-to-East Power Transmission” task have actually adopted LTT-based converter valve modules to make certain steady procedure under incredibly high voltage problems. Some progressed LTTs can also be combined with gateway control to accomplish bidirectional transmission or turn-off functions, further broadening their application variety and making them a suitable choice for resolving high-voltage and high-current control troubles.
