1. Product Fundamentals and Crystal Chemistry
1.1 Composition and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its remarkable solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures varying in piling sequences– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technically appropriate.
The strong directional covalent bonds (Si– C bond power ~ 318 kJ/mol) lead to a high melting point (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have an indigenous lustrous phase, contributing to its security in oxidizing and harsh environments as much as 1600 ° C.
Its vast bandgap (2.3– 3.3 eV, depending on polytype) additionally enhances it with semiconductor buildings, enabling double usage in architectural and digital applications.
1.2 Sintering Difficulties and Densification Methods
Pure SiC is extremely tough to compress as a result of its covalent bonding and low self-diffusion coefficients, requiring making use of sintering help or advanced handling methods.
Reaction-bonded SiC (RB-SiC) is created by penetrating porous carbon preforms with molten silicon, forming SiC in situ; this approach returns near-net-shape parts with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert environment, accomplishing > 99% academic thickness and exceptional mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) uses oxide additives such as Al Two O FIVE– Y TWO O SIX, creating a transient fluid that improves diffusion however might lower high-temperature stamina as a result of grain-boundary phases.
Warm pushing and trigger plasma sintering (SPS) provide fast, pressure-assisted densification with fine microstructures, ideal for high-performance parts needing minimal grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Strength, Solidity, and Put On Resistance
Silicon carbide porcelains exhibit Vickers hardness worths of 25– 30 GPa, 2nd just to diamond and cubic boron nitride amongst design materials.
Their flexural toughness usually varies from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa · m 1ST/ TWO– modest for porcelains but improved through microstructural design such as whisker or fiber reinforcement.
The combination of high solidity and elastic modulus (~ 410 Grade point average) makes SiC exceptionally immune to rough and abrasive wear, outshining tungsten carbide and solidified steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC elements demonstrate service lives several times longer than traditional options.
Its low density (~ 3.1 g/cm FIVE) further adds to wear resistance by lowering inertial forces in high-speed turning parts.
2.2 Thermal Conductivity and Security
One of SiC’s most distinct features is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline kinds, and up to 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels except copper and aluminum.
This property allows efficient heat dissipation in high-power electronic substrates, brake discs, and heat exchanger elements.
Coupled with low thermal development, SiC displays exceptional thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high worths indicate resilience to fast temperature adjustments.

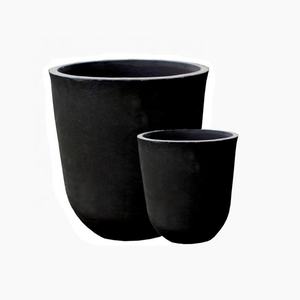

For instance, SiC crucibles can be heated from room temperature level to 1400 ° C in mins without cracking, a task unattainable for alumina or zirconia in comparable conditions.
Additionally, SiC preserves stamina up to 1400 ° C in inert atmospheres, making it perfect for furnace components, kiln furniture, and aerospace elements exposed to severe thermal cycles.
3. Chemical Inertness and Corrosion Resistance
3.1 Habits in Oxidizing and Decreasing Environments
At temperature levels below 800 ° C, SiC is very secure in both oxidizing and lowering settings.
Over 800 ° C in air, a protective silica (SiO ₂) layer kinds on the surface area by means of oxidation (SiC + 3/2 O ₂ → SiO ₂ + CO), which passivates the product and reduces additional destruction.
Nevertheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, bring about accelerated economic downturn– an important factor to consider in generator and burning applications.
In minimizing atmospheres or inert gases, SiC stays steady as much as its disintegration temperature level (~ 2700 ° C), without phase modifications or strength loss.
This stability makes it ideal for molten metal handling, such as light weight aluminum or zinc crucibles, where it resists moistening and chemical assault much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids other than hydrofluoric acid (HF) and strong oxidizing acid combinations (e.g., HF– HNO ₃).
It shows outstanding resistance to alkalis as much as 800 ° C, though prolonged direct exposure to molten NaOH or KOH can create surface area etching through development of soluble silicates.
In molten salt settings– such as those in focused solar power (CSP) or nuclear reactors– SiC demonstrates exceptional deterioration resistance contrasted to nickel-based superalloys.
This chemical toughness underpins its usage in chemical procedure equipment, consisting of valves, linings, and warmth exchanger tubes managing aggressive media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Arising Frontiers
4.1 Established Makes Use Of in Power, Defense, and Manufacturing
Silicon carbide ceramics are important to numerous high-value commercial systems.
In the energy market, they act as wear-resistant linings in coal gasifiers, parts in nuclear gas cladding (SiC/SiC composites), and substrates for high-temperature solid oxide fuel cells (SOFCs).
Defense applications include ballistic armor plates, where SiC’s high hardness-to-density proportion provides remarkable defense versus high-velocity projectiles contrasted to alumina or boron carbide at lower expense.
In production, SiC is used for accuracy bearings, semiconductor wafer managing parts, and rough blowing up nozzles due to its dimensional security and pureness.
Its use in electrical vehicle (EV) inverters as a semiconductor substrate is swiftly growing, driven by effectiveness gains from wide-bandgap electronics.
4.2 Next-Generation Advancements and Sustainability
Continuous research concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which show pseudo-ductile habits, improved durability, and preserved stamina over 1200 ° C– excellent for jet engines and hypersonic lorry leading edges.
Additive production of SiC via binder jetting or stereolithography is progressing, allowing complicated geometries formerly unattainable with standard forming methods.
From a sustainability perspective, SiC’s longevity reduces substitute regularity and lifecycle emissions in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being established through thermal and chemical recuperation procedures to recover high-purity SiC powder.
As industries push toward higher performance, electrification, and extreme-environment procedure, silicon carbide-based porcelains will remain at the forefront of advanced materials design, connecting the void between architectural resilience and practical flexibility.
