1. Material Foundations and Collaborating Style
1.1 Innate Features of Component Phases

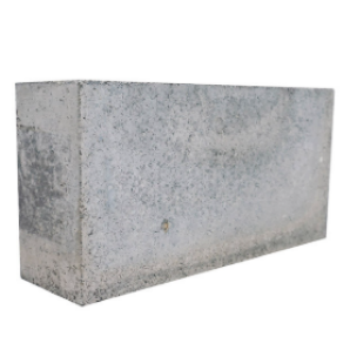

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si four N ₄) and silicon carbide (SiC) are both covalently bound, non-oxide ceramics renowned for their exceptional performance in high-temperature, harsh, and mechanically demanding environments.
Silicon nitride displays outstanding fracture durability, thermal shock resistance, and creep stability due to its distinct microstructure composed of lengthened β-Si six N ₄ grains that make it possible for split deflection and connecting systems.
It maintains strength as much as 1400 ° C and possesses a relatively low thermal expansion coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal stresses throughout fast temperature level adjustments.
In contrast, silicon carbide uses premium solidity, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it excellent for abrasive and radiative warmth dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) also gives superb electrical insulation and radiation resistance, helpful in nuclear and semiconductor contexts.
When incorporated right into a composite, these materials show complementary actions: Si two N four enhances strength and damage resistance, while SiC boosts thermal monitoring and use resistance.
The resulting hybrid ceramic attains an equilibrium unattainable by either phase alone, developing a high-performance structural product tailored for severe service conditions.
1.2 Composite Design and Microstructural Engineering
The layout of Si five N FOUR– SiC compounds entails specific control over stage circulation, grain morphology, and interfacial bonding to make best use of synergistic effects.
Normally, SiC is presented as fine particulate reinforcement (ranging from submicron to 1 µm) within a Si five N four matrix, although functionally rated or split designs are also discovered for specialized applications.
Throughout sintering– generally using gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC bits affect the nucleation and development kinetics of β-Si two N four grains, commonly advertising finer and more consistently oriented microstructures.
This refinement boosts mechanical homogeneity and decreases defect dimension, contributing to improved strength and reliability.
Interfacial compatibility in between the two stages is vital; because both are covalent ceramics with similar crystallographic balance and thermal expansion habits, they develop systematic or semi-coherent borders that stand up to debonding under load.
Ingredients such as yttria (Y TWO O FIVE) and alumina (Al two O SIX) are utilized as sintering aids to promote liquid-phase densification of Si three N ₄ without compromising the stability of SiC.
Nevertheless, too much secondary phases can weaken high-temperature efficiency, so composition and processing must be enhanced to minimize glazed grain boundary movies.
2. Handling Techniques and Densification Difficulties
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Methods
High-grade Si Two N FOUR– SiC composites begin with uniform mixing of ultrafine, high-purity powders utilizing damp ball milling, attrition milling, or ultrasonic diffusion in natural or liquid media.
Attaining consistent diffusion is important to prevent pile of SiC, which can function as anxiety concentrators and reduce crack strength.
Binders and dispersants are added to maintain suspensions for shaping strategies such as slip spreading, tape casting, or injection molding, relying on the preferred element geometry.
Green bodies are after that very carefully dried and debound to eliminate organics prior to sintering, a procedure requiring regulated home heating rates to prevent breaking or warping.
For near-net-shape production, additive methods like binder jetting or stereolithography are emerging, allowing complicated geometries formerly unattainable with standard ceramic handling.
These methods require tailored feedstocks with optimized rheology and eco-friendly stamina, typically involving polymer-derived porcelains or photosensitive resins packed with composite powders.
2.2 Sintering Systems and Stage Security
Densification of Si Five N FOUR– SiC composites is testing because of the solid covalent bonding and minimal self-diffusion of nitrogen and carbon at useful temperatures.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y ₂ O FOUR, MgO) decreases the eutectic temperature level and improves mass transportation via a transient silicate melt.
Under gas stress (commonly 1– 10 MPa N TWO), this melt facilitates reformation, solution-precipitation, and last densification while reducing decay of Si two N ₄.
The presence of SiC impacts thickness and wettability of the liquid phase, potentially altering grain development anisotropy and last structure.
Post-sintering warm therapies may be put on crystallize residual amorphous phases at grain borders, improving high-temperature mechanical buildings and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely made use of to validate stage pureness, absence of unwanted additional phases (e.g., Si two N ₂ O), and uniform microstructure.
3. Mechanical and Thermal Efficiency Under Load
3.1 Strength, Toughness, and Fatigue Resistance
Si Two N FOUR– SiC composites show superior mechanical efficiency compared to monolithic porcelains, with flexural toughness exceeding 800 MPa and fracture toughness worths reaching 7– 9 MPa · m 1ST/ TWO.
The strengthening effect of SiC bits hinders misplacement movement and split propagation, while the extended Si two N ₄ grains continue to supply toughening through pull-out and bridging mechanisms.
This dual-toughening strategy causes a material extremely immune to influence, thermal cycling, and mechanical tiredness– important for rotating elements and structural aspects in aerospace and power systems.
Creep resistance remains outstanding as much as 1300 ° C, credited to the security of the covalent network and minimized grain boundary moving when amorphous phases are lowered.
Solidity values commonly vary from 16 to 19 Grade point average, offering exceptional wear and erosion resistance in abrasive atmospheres such as sand-laden flows or gliding calls.
3.2 Thermal Management and Ecological Toughness
The addition of SiC considerably elevates the thermal conductivity of the composite, usually increasing that of pure Si two N FOUR (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC material and microstructure.
This enhanced warmth transfer capability enables much more reliable thermal management in elements revealed to extreme localized heating, such as burning linings or plasma-facing parts.
The composite keeps dimensional security under steep thermal slopes, resisting spallation and fracturing because of matched thermal expansion and high thermal shock parameter (R-value).
Oxidation resistance is another crucial benefit; SiC develops a safety silica (SiO ₂) layer upon exposure to oxygen at raised temperature levels, which additionally compresses and seals surface area issues.
This passive layer shields both SiC and Si Two N ₄ (which additionally oxidizes to SiO ₂ and N ₂), making certain long-term longevity in air, vapor, or combustion ambiences.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si Five N ₄– SiC composites are progressively deployed in next-generation gas wind turbines, where they make it possible for higher running temperature levels, boosted fuel performance, and reduced air conditioning needs.
Elements such as generator blades, combustor linings, and nozzle overview vanes gain from the material’s ability to stand up to thermal cycling and mechanical loading without considerable destruction.
In atomic power plants, especially high-temperature gas-cooled activators (HTGRs), these compounds act as gas cladding or architectural assistances as a result of their neutron irradiation resistance and fission product retention capability.
In commercial setups, they are used in molten metal handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional metals would certainly fall short prematurely.
Their lightweight nature (thickness ~ 3.2 g/cm THREE) also makes them eye-catching for aerospace propulsion and hypersonic car elements subject to aerothermal heating.
4.2 Advanced Manufacturing and Multifunctional Integration
Emerging research focuses on developing functionally graded Si four N ₄– SiC frameworks, where make-up varies spatially to enhance thermal, mechanical, or electro-magnetic buildings across a solitary element.
Crossbreed systems incorporating CMC (ceramic matrix composite) architectures with fiber support (e.g., SiC_f/ SiC– Si Four N FOUR) press the borders of damages tolerance and strain-to-failure.
Additive production of these composites allows topology-optimized warm exchangers, microreactors, and regenerative air conditioning networks with inner latticework frameworks unattainable using machining.
Additionally, their fundamental dielectric properties and thermal stability make them prospects for radar-transparent radomes and antenna windows in high-speed systems.
As demands expand for materials that carry out reliably under severe thermomechanical lots, Si six N ₄– SiC compounds stand for an essential improvement in ceramic design, merging robustness with performance in a solitary, lasting platform.
In conclusion, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the strengths of two sophisticated ceramics to develop a hybrid system efficient in growing in one of the most severe operational atmospheres.
Their proceeded growth will play a main role in advancing tidy power, aerospace, and industrial innovations in the 21st century.
