1. Intro to Oil Immersed Transformers
In the intricate web of our modern-day electrical grid, transformers play a vital role, silently stepping voltage up and down to make sure electricity can be sent efficiently over fars away and distributed securely to our homes and industries. Amongst the various kinds readily available, the oil submersed transformer stands as a testimony to proven reliability and longevity. For years, these workhorses have actually formed the foundation of power systems worldwide.
An oil immersed transformer is a kind of electrical transformer that uses a specific protecting oil as both a coolant and an insulating tool. This style is primarily made use of for tool to high-power applications, making it a keystone of electric facilities. This overview digs deep right into the world of oil immersed power transformers and oil submersed distribution transformers, discovering their modern technology, applications, and their developing function in an age of digitalization and renewable energy.
1.1 What is an Oil Submersed Transformer?
At its core, an oil submersed transformer consists of a magnetic core and copper or aluminum windings housed inside a secured storage tank full of insulating oil. The primary feature of the oil is twofold:
1. Insulation: The oil has high dielectric strength, effectively protecting the high-voltage windings from the transformer’s core and based container. This stops brief circuits and electrical failures.
2. Air conditioning: As the transformer runs, the windings produce considerable heat as a result of I ² R losses. The flowing oil absorbs this warmth, convects it to the transformer’s container walls, and dissipates it into the bordering air. Bigger units typically include radiators or fins to boost the surface area for more effective cooling.
This dual-purpose use oil makes the oil submersed transformer remarkably efficient and durable, efficient in handling high tons and enduring transient overloads better than numerous dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil immersed transformers, they serve distinctive functions within the power system network. Recognizing the distinction is crucial.
An oil submersed power transformer is a heavyweight, generally made use of in transmission networks at generating stations and significant substations. Their key duty is to “step-up” the voltage created at the nuclear power plant to very high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for reliable long-distance transmission, and to “step-down” the voltage at receiving substations for further circulation. They are identified by their very high power rankings (usually surpassing 100 MVA), intricate construction, and on-load tap changers for voltage law.
An oil engaged distribution transformer, on the various other hand, carries out the final step in the power distribution chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the reduced voltages (e.g., 400/230 V) utilized by industrial and household customers. You generally locate them on utility poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power scores (generally as much as 2,500 kVA), and are created for maximum performance at lower, extra constant lots.

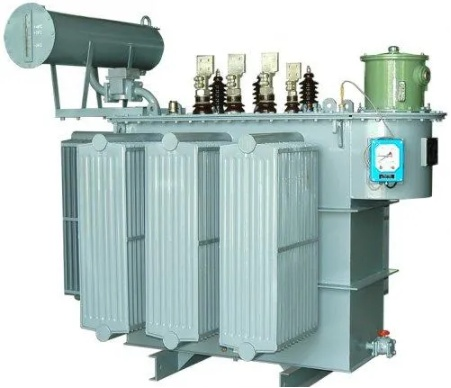

(Oil immersed power transformer)
2. Secret Advantages of Oil Submersed Transformers
The enduring popularity of the oil immersed transformer is not unexpected. It uses a collection of engaging benefits that make it the preferred choice for many requiring applications.
2.1 Superior Cooling and Overload Capability
The exceptional thermal ability of oil contrasted to air enables an oil immersed power transformer to manage and dissipate heat far more properly. This equates to a greater overload capability. During periods of height electrical energy need, an oil submersed transformer can manage momentary overloads without receiving damages, an essential attribute for keeping grid stability. The oil’s circulation makes certain even heat circulation, protecting against localized hot spots that can break down insulation over time.
2.2 Enhanced Insulation and Long Life Span
The combination of top quality mineral oil and diligently impregnated paper insulation creates a dielectric system of extraordinary strength. This durable insulation system secures the transformer from voltage rises and transients, contributing to an operational lifespan that can extend to 30-40 years or even more with correct maintenance. The secured tank additionally secures the internal parts from dampness, dirt, and other climatic contaminants.
2.3 High Efficiency and Cost-Effectiveness
For high-power applications, the oil submersed transformer is typically the most economical choice. The materials utilized– mineral oil, steel storage tank, and copper/aluminum windings– offer a beneficial balance of performance and expense. The high effectiveness of these transformers, especially at their ranked tons, results in lower power losses over their life time, bring about significant price financial savings for energy companies and big industrial customers.
3. Warm Topics and Future Trends
The globe of oil submersed transformers is not static. It is continuously progressing to meet new obstacles and integrate with contemporary technologies.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and safety and security problems are driving a significant shift far from traditional mineral oil. The marketplace is swiftly adopting oil submersed transformers loaded with eco-friendly esters (synthetic or natural). These oils supply a greater fire point (making them K-class fire-resistant), are much less hazardous, and are conveniently naturally degradable, significantly reducing the ecological influence in instance of a leak. This fad is making oil submersed circulation transformers more secure for installment in urban areas and ecologically sensitive locations.
3.2 Combination with Smart Grids and IoT
The modern-day oil immersed power transformer is becoming an intelligent node in the wise grid. Sensing units are being integrated to monitor vital specifications in real-time, including:
Dissolved Gas Analysis (DGA): Discovering fault gases created within the oil to predict incipient faults.
Temperature Level Tracking: Tracking top-oil and hotspot temperatures.
Load and Power Quality Surveillance.
This data, transmitted using IoT (Web of Things) systems, makes it possible for predictive maintenance, prevents unexpected interruptions, and enhances transformer utilization and life expectancy.
3.3 Supporting the Renewable Energy Transition
The global promote renewables is developing new demand for oil submersed transformers. Large-scale solar farms and wind power installments call for robust oil submersed power transformers to tip up the produced voltage to transmission levels. Moreover, the intermittent nature of renewables areas greater tension on grid components, and the proven dependability and overload capability of oil immersed transformers make them excellent for this critical role.
4. Choice and Upkeep Finest Practices
Selecting the right transformer and keeping it effectively is crucial to a reputable power system.
4.1 Just how to Pick the Right Oil Immersed Transformer
Picking in between an oil submersed power transformer and an oil submersed circulation transformer depends upon the application. Secret factors to consider consist of:
1. Voltage Degree and kVA Ranking: Match the transformer’s requirements to your system’s needs.
2. Application: Transmission substation, industrial plant, or commercial circulation.
3. Area: Indoor vs. outside, ecological conditions, and fire safety and security laws (which might affect the option of shielding oil).
4. Efficiency Specifications: Adhere to regional performance criteria like DOE (U.S.A.) or EU CoC (Europe).
5. Budget plan: Take into consideration both the preliminary capital price and the overall cost of possession, including losses.

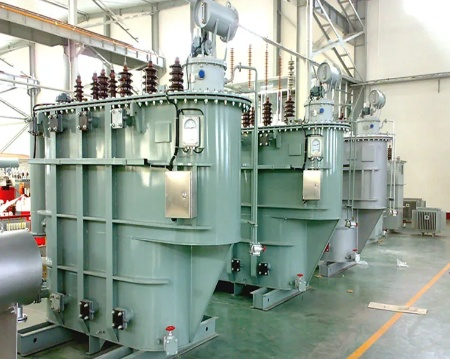

(Oil immersed distribution transformer)
4.2 Necessary Maintenance for Longevity
Proactive upkeep is essential for any kind of oil immersed transformer. A thorough program must include:
1. Normal Oil Tasting and Screening: Routine DGA and screening of dielectric toughness and dampness web content are the most effective ways to evaluate the health and wellness of the transformer.
2. Bushing and Insulation Evaluation: Aesthetic look for cracks, contamination, or leakages.
3. Faucet Changer Upkeep: Routine assessment and maintenance of on-load or off-load tap changers.
4. Keep it Tidy and Dry: Ensuring the container exterior, radiators, and breathers are clean and functional.
The oil submersed transformer, in its duties as both a high-capacity oil immersed power transformer and a common oil submersed distribution transformer, stays an irreplaceable element of our worldwide energy framework. Its proven design, paired with ongoing innovations in insulating fluids and electronic tracking, ensures it will continue to be a trusted, reliable, and smart remedy for powering our globe for decades to find. As we develop the grids of the future, incorporating even more renewables and digital intelligence, the durable and versatile oil submersed transformer will most certainly go to the heart of it.
