1. Essential Structure and Architectural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Material Course

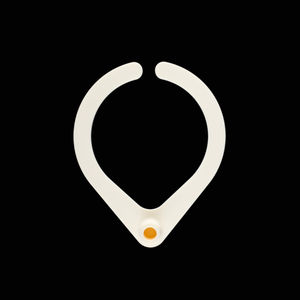

(Transparent Ceramics)
Quartz ceramics, additionally called fused quartz or fused silica porcelains, are sophisticated not natural products originated from high-purity crystalline quartz (SiO ₂) that undertake controlled melting and consolidation to create a dense, non-crystalline (amorphous) or partially crystalline ceramic structure.
Unlike traditional porcelains such as alumina or zirconia, which are polycrystalline and composed of multiple phases, quartz ceramics are mostly composed of silicon dioxide in a network of tetrahedrally collaborated SiO four units, using extraordinary chemical pureness– usually exceeding 99.9% SiO ₂.
The distinction in between fused quartz and quartz ceramics depends on processing: while merged quartz is commonly a totally amorphous glass formed by quick air conditioning of molten silica, quartz porcelains might involve regulated condensation (devitrification) or sintering of fine quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with enhanced mechanical toughness.
This hybrid technique integrates the thermal and chemical security of merged silica with enhanced fracture durability and dimensional stability under mechanical tons.
1.2 Thermal and Chemical Security Systems
The phenomenal performance of quartz porcelains in severe environments stems from the strong covalent Si– O bonds that create a three-dimensional connect with high bond energy (~ 452 kJ/mol), providing impressive resistance to thermal degradation and chemical assault.
These products display a very low coefficient of thermal expansion– about 0.55 × 10 ⁻⁶/ K over the variety 20– 300 ° C– making them very resistant to thermal shock, a vital feature in applications including rapid temperature biking.
They maintain structural honesty from cryogenic temperature levels as much as 1200 ° C in air, and even greater in inert atmospheres, before softening starts around 1600 ° C.
Quartz ceramics are inert to many acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the SiO two network, although they are prone to attack by hydrofluoric acid and strong alkalis at elevated temperature levels.
This chemical resilience, integrated with high electric resistivity and ultraviolet (UV) openness, makes them excellent for usage in semiconductor processing, high-temperature heaters, and optical systems revealed to severe problems.
2. Manufacturing Processes and Microstructural Control

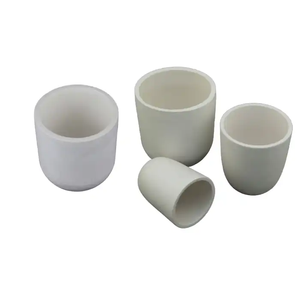

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz ceramics involves sophisticated thermal processing techniques made to protect purity while attaining preferred thickness and microstructure.
One common technique is electric arc melting of high-purity quartz sand, adhered to by controlled cooling to form fused quartz ingots, which can after that be machined right into parts.
For sintered quartz ceramics, submicron quartz powders are compressed using isostatic pushing and sintered at temperatures between 1100 ° C and 1400 ° C, frequently with marginal ingredients to promote densification without causing extreme grain growth or phase change.
A critical obstacle in handling is staying clear of devitrification– the spontaneous condensation of metastable silica glass into cristobalite or tridymite stages– which can compromise thermal shock resistance as a result of volume changes during stage changes.
Manufacturers utilize specific temperature level control, rapid air conditioning cycles, and dopants such as boron or titanium to subdue undesirable formation and keep a secure amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Fabrication
Recent breakthroughs in ceramic additive manufacturing (AM), particularly stereolithography (SLA) and binder jetting, have enabled the manufacture of complicated quartz ceramic components with high geometric accuracy.
In these procedures, silica nanoparticles are put on hold in a photosensitive material or precisely bound layer-by-layer, complied with by debinding and high-temperature sintering to achieve full densification.
This technique lowers product waste and permits the production of detailed geometries– such as fluidic networks, optical tooth cavities, or warmth exchanger components– that are tough or impossible to achieve with conventional machining.
Post-processing techniques, including chemical vapor infiltration (CVI) or sol-gel covering, are in some cases related to secure surface porosity and enhance mechanical and ecological toughness.
These technologies are increasing the application range of quartz ceramics into micro-electromechanical systems (MEMS), lab-on-a-chip devices, and personalized high-temperature components.
3. Useful Features and Performance in Extreme Environments
3.1 Optical Transparency and Dielectric Actions
Quartz ceramics show special optical homes, consisting of high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them indispensable in UV lithography, laser systems, and space-based optics.
This transparency emerges from the absence of digital bandgap transitions in the UV-visible array and minimal spreading due to homogeneity and reduced porosity.
In addition, they have superb dielectric homes, with a low dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, allowing their usage as shielding parts in high-frequency and high-power digital systems, such as radar waveguides and plasma activators.
Their capability to keep electric insulation at elevated temperatures additionally boosts dependability in demanding electrical settings.
3.2 Mechanical Actions and Long-Term Resilience
In spite of their high brittleness– a common attribute among ceramics– quartz ceramics show good mechanical strength (flexural stamina as much as 100 MPa) and superb creep resistance at heats.
Their solidity (around 5.5– 6.5 on the Mohs scale) provides resistance to surface abrasion, although care needs to be taken during handling to stay clear of cracking or split breeding from surface area flaws.
Ecological sturdiness is one more key benefit: quartz ceramics do not outgas significantly in vacuum, stand up to radiation damages, and maintain dimensional security over long term exposure to thermal biking and chemical settings.
This makes them recommended materials in semiconductor fabrication chambers, aerospace sensors, and nuclear instrumentation where contamination and failing should be lessened.
4. Industrial, Scientific, and Emerging Technological Applications
4.1 Semiconductor and Photovoltaic Manufacturing Solutions
In the semiconductor market, quartz porcelains are ubiquitous in wafer handling equipment, consisting of furnace tubes, bell containers, susceptors, and shower heads used in chemical vapor deposition (CVD) and plasma etching.
Their pureness prevents metal contamination of silicon wafers, while their thermal stability guarantees consistent temperature level distribution during high-temperature processing actions.
In photovoltaic or pv production, quartz components are utilized in diffusion furnaces and annealing systems for solar battery manufacturing, where consistent thermal accounts and chemical inertness are important for high return and effectiveness.
The demand for larger wafers and higher throughput has actually driven the advancement of ultra-large quartz ceramic structures with enhanced homogeneity and decreased flaw density.
4.2 Aerospace, Protection, and Quantum Innovation Integration
Past commercial handling, quartz ceramics are employed in aerospace applications such as missile assistance windows, infrared domes, and re-entry lorry parts because of their ability to endure extreme thermal slopes and wind resistant stress.
In defense systems, their transparency to radar and microwave regularities makes them appropriate for radomes and sensing unit real estates.
A lot more just recently, quartz ceramics have actually found functions in quantum modern technologies, where ultra-low thermal growth and high vacuum cleaner compatibility are needed for accuracy optical tooth cavities, atomic traps, and superconducting qubit rooms.
Their ability to lessen thermal drift makes certain long coherence times and high measurement accuracy in quantum computer and noticing systems.
In recap, quartz ceramics stand for a course of high-performance materials that link the void between conventional ceramics and specialized glasses.
Their unparalleled combination of thermal security, chemical inertness, optical transparency, and electric insulation enables modern technologies operating at the limitations of temperature, pureness, and precision.
As manufacturing strategies evolve and demand expands for products with the ability of enduring progressively severe conditions, quartz ceramics will certainly continue to play a fundamental duty ahead of time semiconductor, power, aerospace, and quantum systems.
