1. Material Fundamentals and Architectural Feature
1.1 Crystal Chemistry and Polymorphism

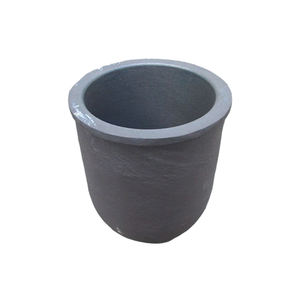

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms set up in a tetrahedral lattice, developing one of the most thermally and chemically durable products recognized.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal structures being most relevant for high-temperature applications.
The strong Si– C bonds, with bond power exceeding 300 kJ/mol, give extraordinary solidity, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is liked due to its capacity to preserve architectural honesty under extreme thermal gradients and harsh molten atmospheres.
Unlike oxide ceramics, SiC does not go through turbulent phase changes as much as its sublimation point (~ 2700 ° C), making it perfect for sustained operation above 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying attribute of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises consistent warmth circulation and lessens thermal anxiety throughout quick home heating or air conditioning.
This home contrasts sharply with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to breaking under thermal shock.
SiC likewise displays excellent mechanical strength at raised temperatures, preserving over 80% of its room-temperature flexural stamina (up to 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further improves resistance to thermal shock, a vital consider repeated cycling between ambient and operational temperatures.
Furthermore, SiC shows superior wear and abrasion resistance, ensuring lengthy life span in settings involving mechanical handling or unstable melt flow.
2. Manufacturing Methods and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Approaches
Commercial SiC crucibles are largely made with pressureless sintering, response bonding, or warm pressing, each offering distinct benefits in cost, pureness, and performance.
Pressureless sintering involves condensing fine SiC powder with sintering help such as boron and carbon, adhered to by high-temperature treatment (2000– 2200 ° C )in inert atmosphere to accomplish near-theoretical thickness.
This technique yields high-purity, high-strength crucibles appropriate for semiconductor and progressed alloy processing.
Reaction-bonded SiC (RBSC) is generated by infiltrating a permeable carbon preform with liquified silicon, which reacts to create β-SiC in situ, resulting in a composite of SiC and recurring silicon.
While slightly lower in thermal conductivity due to metal silicon inclusions, RBSC uses superb dimensional security and lower manufacturing cost, making it preferred for large industrial usage.
Hot-pressed SiC, though much more expensive, supplies the greatest thickness and pureness, booked for ultra-demanding applications such as single-crystal growth.
2.2 Surface Top Quality and Geometric Precision
Post-sintering machining, consisting of grinding and splashing, makes certain specific dimensional tolerances and smooth inner surfaces that minimize nucleation websites and decrease contamination threat.
Surface area roughness is very carefully regulated to prevent melt attachment and assist in very easy launch of solidified products.
Crucible geometry– such as wall surface thickness, taper angle, and bottom curvature– is maximized to stabilize thermal mass, structural strength, and compatibility with furnace heating elements.
Custom-made styles accommodate particular melt volumes, home heating accounts, and material sensitivity, guaranteeing optimum efficiency across varied industrial processes.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic testing, verifies microstructural homogeneity and lack of flaws like pores or fractures.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Aggressive Environments
SiC crucibles display remarkable resistance to chemical attack by molten metals, slags, and non-oxidizing salts, outperforming traditional graphite and oxide porcelains.
They are secure touching liquified light weight aluminum, copper, silver, and their alloys, withstanding wetting and dissolution due to low interfacial energy and development of safety surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles protect against metallic contamination that can break down electronic buildings.
Nonetheless, under extremely oxidizing problems or in the existence of alkaline changes, SiC can oxidize to create silica (SiO TWO), which may respond better to develop low-melting-point silicates.
For that reason, SiC is finest suited for neutral or lowering ambiences, where its security is made best use of.
3.2 Limitations and Compatibility Considerations
Regardless of its effectiveness, SiC is not generally inert; it reacts with certain molten materials, particularly iron-group steels (Fe, Ni, Carbon monoxide) at high temperatures with carburization and dissolution processes.
In molten steel processing, SiC crucibles deteriorate rapidly and are consequently avoided.
Similarly, antacids and alkaline planet metals (e.g., Li, Na, Ca) can lower SiC, releasing carbon and developing silicides, limiting their use in battery product synthesis or responsive steel spreading.
For liquified glass and ceramics, SiC is typically suitable yet might present trace silicon right into highly sensitive optical or digital glasses.
Comprehending these material-specific interactions is crucial for choosing the suitable crucible type and making sure process pureness and crucible longevity.
4. Industrial Applications and Technical Advancement
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are essential in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they endure long term exposure to thaw silicon at ~ 1420 ° C.
Their thermal security guarantees consistent formation and lessens dislocation density, directly influencing photovoltaic efficiency.
In foundries, SiC crucibles are used for melting non-ferrous steels such as light weight aluminum and brass, providing longer service life and minimized dross development compared to clay-graphite options.
They are likewise utilized in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic compounds.
4.2 Future Patterns and Advanced Product Integration
Arising applications include the use of SiC crucibles in next-generation nuclear materials testing and molten salt reactors, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O THREE) are being put on SiC surface areas to better enhance chemical inertness and protect against silicon diffusion in ultra-high-purity processes.
Additive production of SiC elements using binder jetting or stereolithography is under growth, encouraging complicated geometries and quick prototyping for specialized crucible layouts.
As demand expands for energy-efficient, durable, and contamination-free high-temperature processing, silicon carbide crucibles will stay a keystone technology in sophisticated materials producing.
To conclude, silicon carbide crucibles represent a crucial making it possible for element in high-temperature commercial and scientific processes.
Their exceptional combination of thermal security, mechanical toughness, and chemical resistance makes them the product of option for applications where performance and integrity are critical.
